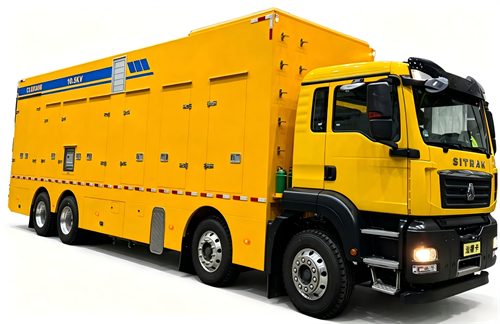

Mounted Mobile Emergency Gas Turbine Generator Set — AGT3C 3 MW Vehicle
JP Power gas generator sets cover 7kW to 4.5MW, suitable for natural gas, biogas, coal bed methane, landfill gas, and other clean fuels. Leveraging China factory's proven gas generation technology, units can be configured with world-class engines and support open, canopy, and containerized enclosures — from standby power to independent power stations.
Technical Specifications
| Item | Unit |
|---|
| Rated Net Output Power | 3000kw |
| Rated Output Voltage | 10.5kV |
| Operating Speed | 1500rpm |
| Power Factor (Lagging) | 0.8 |
| Rated Frequency | 50Hz |
| Exhaust Mass Flow | 20.6kg/s |
| Acoustic Noise Level | 80 @1m; 75 @7m Horizontal Distance db(A) |
| Complete Vehicle Dimension | 11800×2500×3990mm |
| Complete Vehicle Gross Weight | 32t |
Key Features & Benefits
Rugged All-Terrain Chassis Supports Remote Off-Grid Site Deployment
Independent Self-Startup Eliminates Reliance on External Auxiliary Power Sources
Fully Automated Control System Enables Unattended Long-Duration Operation
Fully Compliant With Medium-Voltage Grid Synchronization & Backup Standards
Dual-Fuel Design Compatible With Diesel and Multiple Industrial Process Gases
Target Industry Applications
Disaster Relief Mobile Power Supply
Military Field Portable Power Units
Temporary Power for Large Venues & Events
Remote Mining & Construction Sites
Telecommunications Tower Backup Power
Utility Grid Emergency Standby Generation
Request a Custom Configuration
Our engineering team will work with you to configure the optimal gas generator set solution — fuel type, power output, enclosure, control system, and site requirements. Contact us with your specifications.
Contact Our Team →
